Barnes Pressure Sewer

Barnes Pressure Sewer System offers a solution to the residential market for new or existing sewer needs. The EcoTRAN™ Grinder Pump System preserves groundwater ecology by collecting and grinding residential sewage in an underground basin and transmitting the waste under pressure to a remote private or municipal waste treatment plant. The unit is easily installed and maintained as well as aesthetically pleasing.

Crane Pumps & Systems offers comprehensive piping analysis for your projects. Contact OPE for more information.

Why Use a Pressure Sewer System?

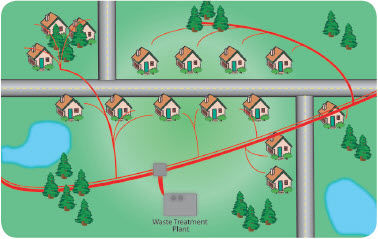

Pressure sewer systems are an effective method to move residential wastewater through small diameter pipes to collection facilities where other methods are less economical or less feasible.

The primary differences between
conventional gravity sewer systems and pressure sewer
systems are in the piping network and the reduction of solids size in the wastewater. Pressure sewer systems use specialized submersible grinder pumps, which are designed to reduce sewage particulate size to easily move the sewage through small diameter pipes.

Grinder pumps and pressure sewer systems is a cost-effective, long life answer to allow more
home sites, both existing and new, access to a public sewer
system or regional private waste water treatment system.

Omni Grind Plus Pump

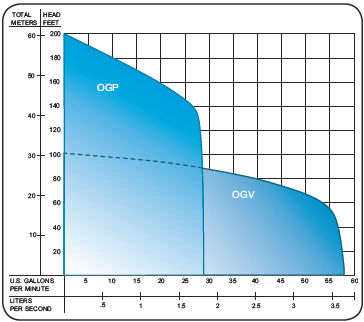

Providing heads up to 200' and flows to 28 GPM, give the high head capabilities of a progressing cavity pump and the long life of Barnes centrifugal grinder pumps.  The Omni Grind Plus is truly a universal grinder pump for single family residences.

Superior Performance
Two stage pump design provides high head
Installed with the Barnes ESPSTM, (Environmentally Sealed Pressure Switch) problems with grease build up are nonexistent.
Start and run capacitors are located in the motor housing so no expensive control panel required.
UL and CSA listed to assure quality and electrical safety.

Aesthetically Pleasing!

Most other options provide simple cover solutions that do not blend into their surroundings, leaving that "Green" cover somewhere in your yard.

The Barnes EcoTRAN System basin cover readily adapts to virtually any landscape design, blending in with the natural environment surrounding it.

EcoTran Pressure Sewer System

Frequently Asked Questions

The Omni Grind (OGV) is rated for low to medium heads, up to 95 feet or 41 PSIG, while the Omni Grind Plus (OGP) is designed for higher heads, up to 180 feet or 78 PSIG at 10GPM. The project Engineer or a Barnes  Pressure Sewer specialist can advise the expected head based on the system piping design, or you can simply select the OGP for any head up to 180 feet.

No. In order to provide the best possible grinder pump life, we have chosen to use grinder pumps with the proven centrifugal vortex design. Progressing cavity pumps continuously wear, and the wear is accelerated under certain operating conditions; centrifugal pumps by their nature are not affected by pressure extremes or high flow rates.

Barnes offers an extensive line of engineered pressure sewer systems with available depths up to 20 feet and diameters up to 6 feet. Larger capacity stations are readily available for your specific needs.

The size of the external cover (effective
diameter) depends primarily on the riser
diameter; an 18" diameter was chosen to
reduce the visual impact of the cover in
the homeowner’s yard. The specifications
calling for a 24" diameter require a worker
to enter the basin to perform shutoff valve
maintenance. With the removable POD design,
all maintenance is performed from topside
eliminating the need for confined space entry.

The EcoTRAN is provided with brass padlocks for both the basin cover and the alarm box.

The EcoTRAN has been thoroughly tested and qualified to NSF/ANSI 46, a specification that requires successful operation despite the occasional entry of a wide range of challenging materials, including cloth.

Brochures & Specifications

Get all your information in a single source!

O&M ManualPDF
Showing entries (filtered from total entries)

Product Highlight

Crane Pumps & Systems also offer Crown Pumps. Crown offers a broad range of engineered self-priming centrifugal pumps for a variety of light to heavy-duty wastewater applications. Designed specifically for unscreened raw sewage or industrial waste applications. Available in 3" - 10" up to 4400 GPM and 180 TDH.
